KraftChat - A React Native App

KraftChat

Project Description

KraftChat is a mobile real-time chat application built using React Native, Firebase, Expo and various modern tools. It allows users to communicate with one another via text, images, and location sharing.

The app utilizes Firebase for real-time database functionality, Firebase Authentication for anonymous sign-ins,Firestore for storing chat messages and Firebase Cloud Storage for uploading images.

The app also caches messages locally when offline and restores them when the user is back online.

User Stories

· As a new user, I want to easily join a chat room to start chatting with friends and family.

· As a user, I want to send messages, images, and my location.

· As a user, I want to view messages offline.

· As a user with a visual impairment, I want the app to be screen reader-compatible.

Key Features

  • Anonymous User Authentication

    · Users are signed in anonymously using Firebase Authentication.

  • Real-Time Messaging

    · Messages are synced in real-time using Firebase Firestore.

  • Offline Support

    · Messages are cached locally using AsyncStorage, allowing users to view them even without an internet connection.

  • Image and Location Sharing

    · Users can send images from their gallery or camera and share their current location.

  • Customizable Chat Background

    · Users can choose a chat background color on the start screen.

  • Cross-Platform

    · Built using React Native, the app works on both iOS and Android.

Technologies Used

  • React Native

    · Frontend/UI framework for building cross-platform mobile applications.

  • Expo

    · Open-source platform for developing and testing universal native apps for Android, iOS and the web with JavaScript and React.

  • Firebase

    Backend-as-a-Service (BaaS) platform providing user authentication, database, and storage.

    · Firebase Firestore :

    NoSQL database used for real-time storage and syncing of chat messages.

    · Firebase Authentication :

    Handles anonymous sign-ins for users.

    · Firebase Storage :

    Used for storing and retrieving uploaded images.

  • React Navigation

    · Used for handling navigation between screens.

  • AsyncStorage

    · For storing cached messages when the app is offline.

  • React Native Maps

    · For rendering map views with location data within messages.

  • Expo Fonts

    · Used to load custom fonts in the app.

LIBRARIES & MODULES

  • react-native-gifted-chat

    · A customizable chat UI component library for React Native.

  • react-native-maps

    · Used for displaying shared location data in messages.

  • expo-image-picker

    · Used for selecting images from the gallery or taking new photos.

  • expo-location

    · Used for retrieving the user's current location.

  • @react-native-async-storage/async-storage

    · Used for caching messages when the user is offline.

  • @react-native-community/netinfo

    · Detects the device's network connection status.

  • expo-font

    · Loads custom fonts (Poppins) for the app's UI.

  • firebase

    · Firebase SDK for interacting with Firebase services.

COMPONENT DETAILS

App.js

The root component(entry point) of the app that integrates all other components and handles application-wide logic such as network status, font loading, and navigation.

  • Key Features

    · Manages global app state (like connection status and font loading).

    · Sets up navigation between the Start and Chat screens.

  • Important functions

    · loadFonts - Loads custom fonts required for the app.

    · useEffect - Monitors network connectivity to adjust Firebase network status accordingly.

START.JS

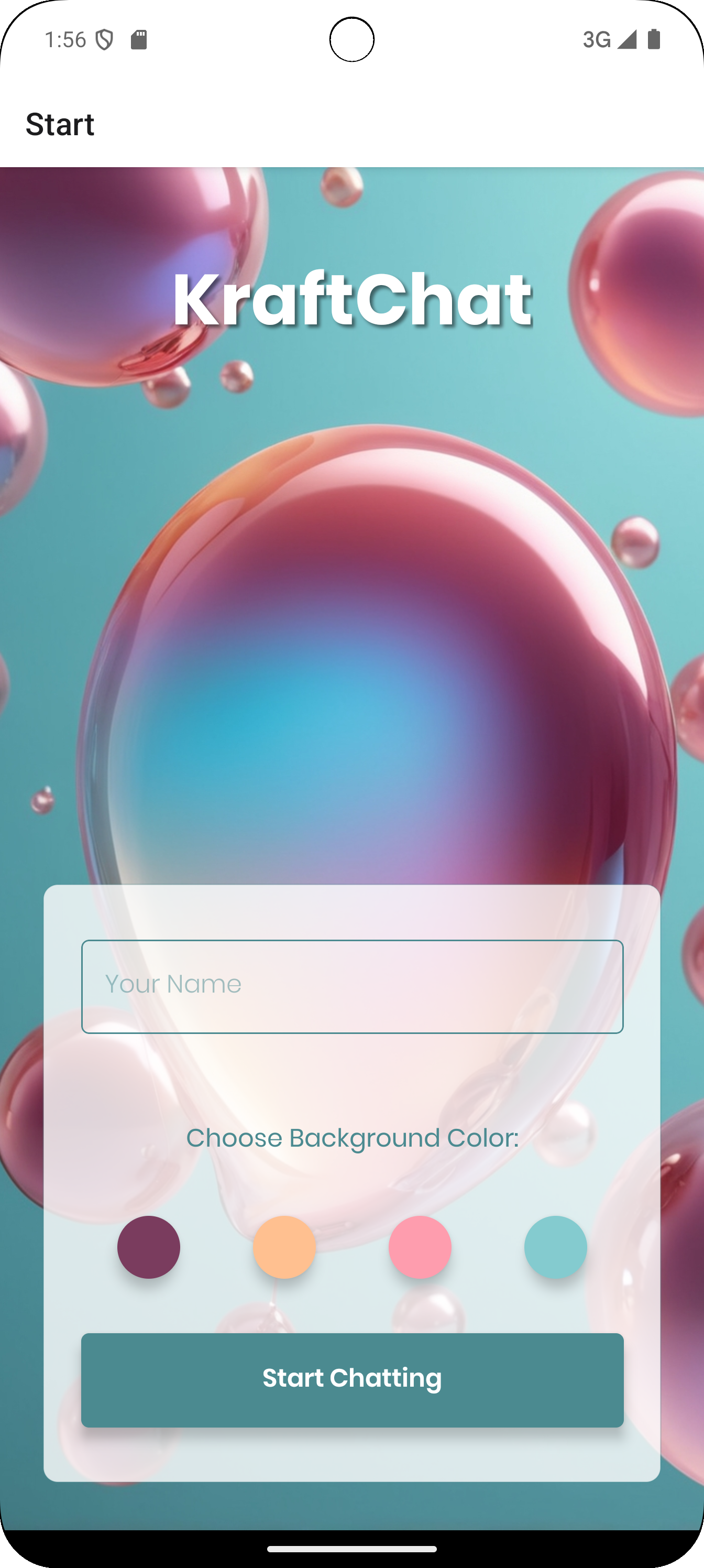

The app’s landing screen where users enter their name and select a background color.

  • Key Features

    · Allows users to input their name.

    · Lets users choose a background color for the chat screen.

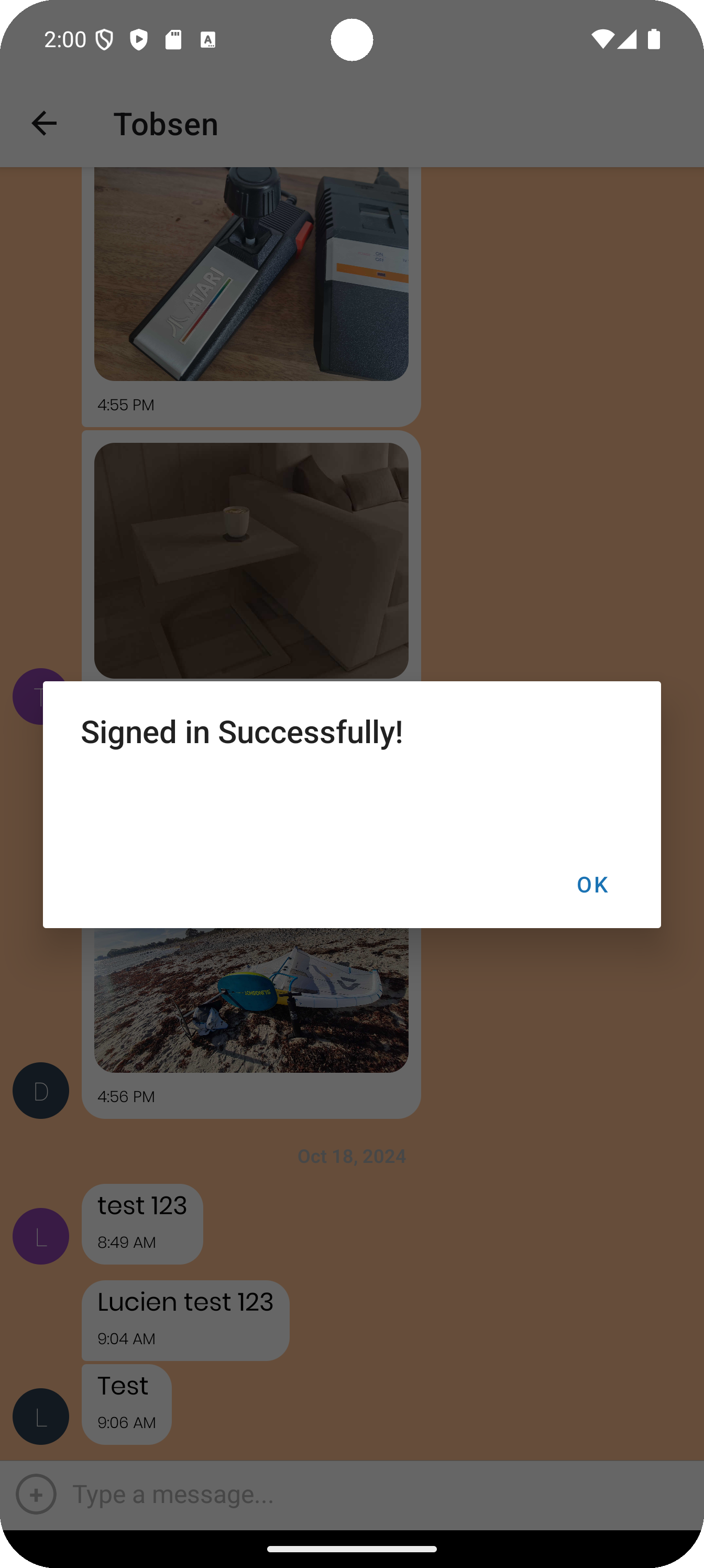

    · Signs in the user anonymously using Firebase Authentication.

    · Navigates to the Chat screen with the provided details.

  • Important functions

    · signInUser - Signs the user in anonymously and navigates to the Chat screen.

CHAT.JS

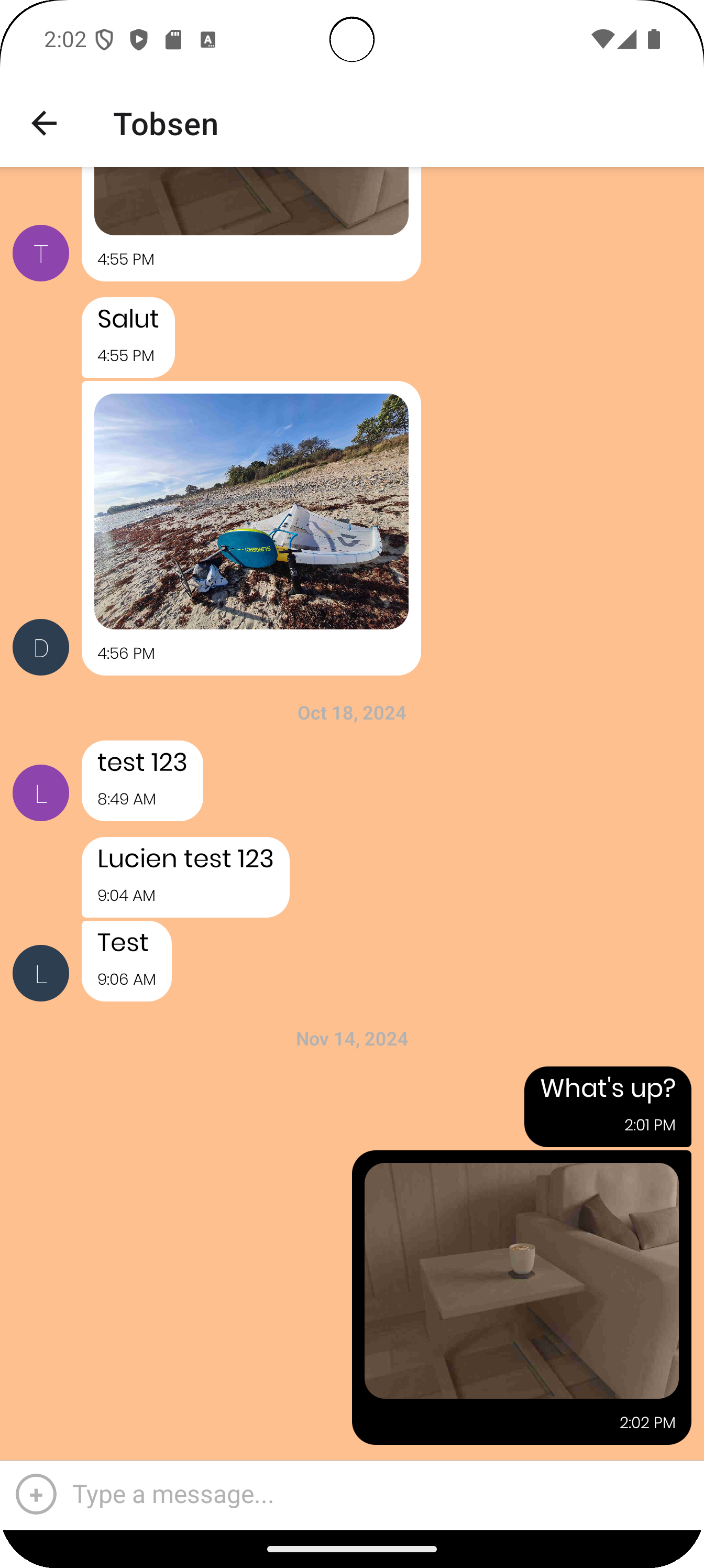

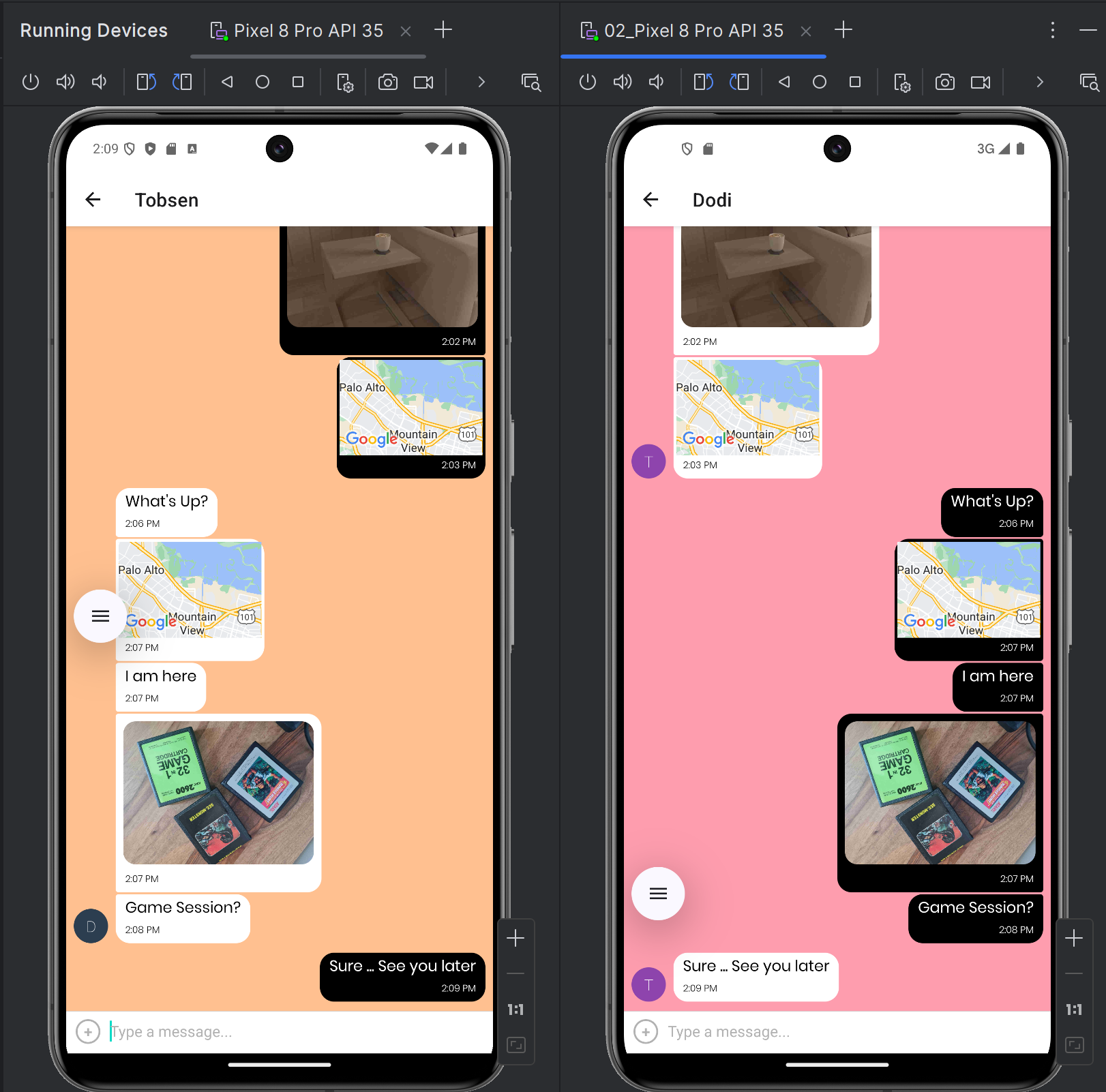

This component is responsible for displaying the main chat interface and handling real-time messaging.

  • Key Features

    · Displays messages in real-time using Firebase Firestore.

    · Caches messages locally using AsyncStorage when offline.

    · Renders a map view for location messages and displays images when sent.

    · Includes custom chat bubbles and input toolbar.

    · Implements sending text, images, and location.

  • Important functions

    · onSend - Handles the sending of messages to Firebase.

    · renderBubble - Customizes the message bubbles (e.g., background color, text color).

    · renderInputToolbar - Shows the input toolbar if the user is connected to the internet.

    · loadCachedMessages - Loads previously cached messages when the device is offline.

    · cacheMessages - Saves the messages locally to AsyncStorage.

CustomActions.js

Custom component for additional chat actions (e.g. sending images or location).

  • Key features

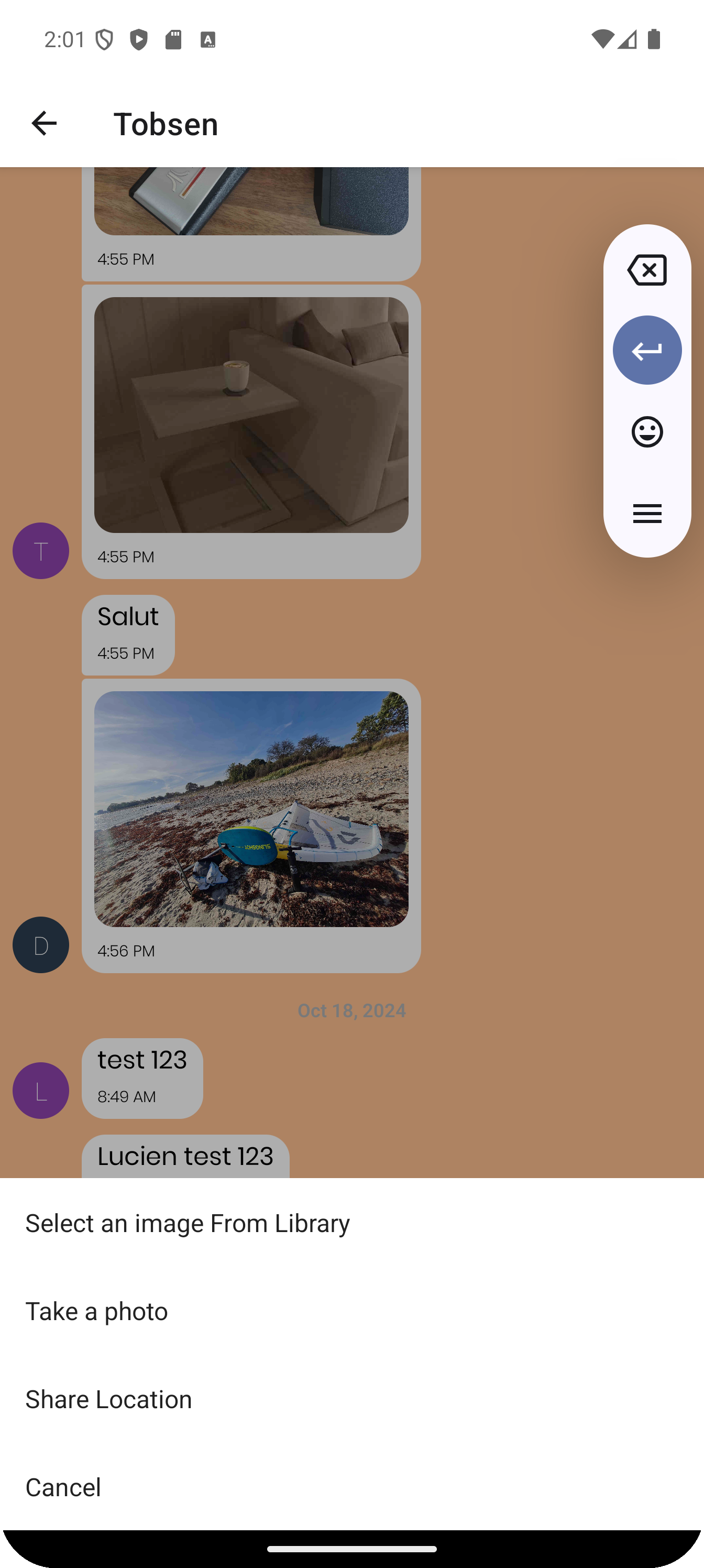

    · Presents an action sheet with options for sending a photo from the gallery, taking a photo, or sharing the current location.

    · Handles permissions for accessing the camera, gallery, and location.

    · Uploads selected images to Firebase Storage and sends the image URL in the chat.

    · Uses Expo's ImagePicker and Location API to handle image selection and location fetching.

  • Important functions

    · onActionPress - Displays the action sheet with options.

    · pickImage - Allows the user to pick an image from their device's gallery.

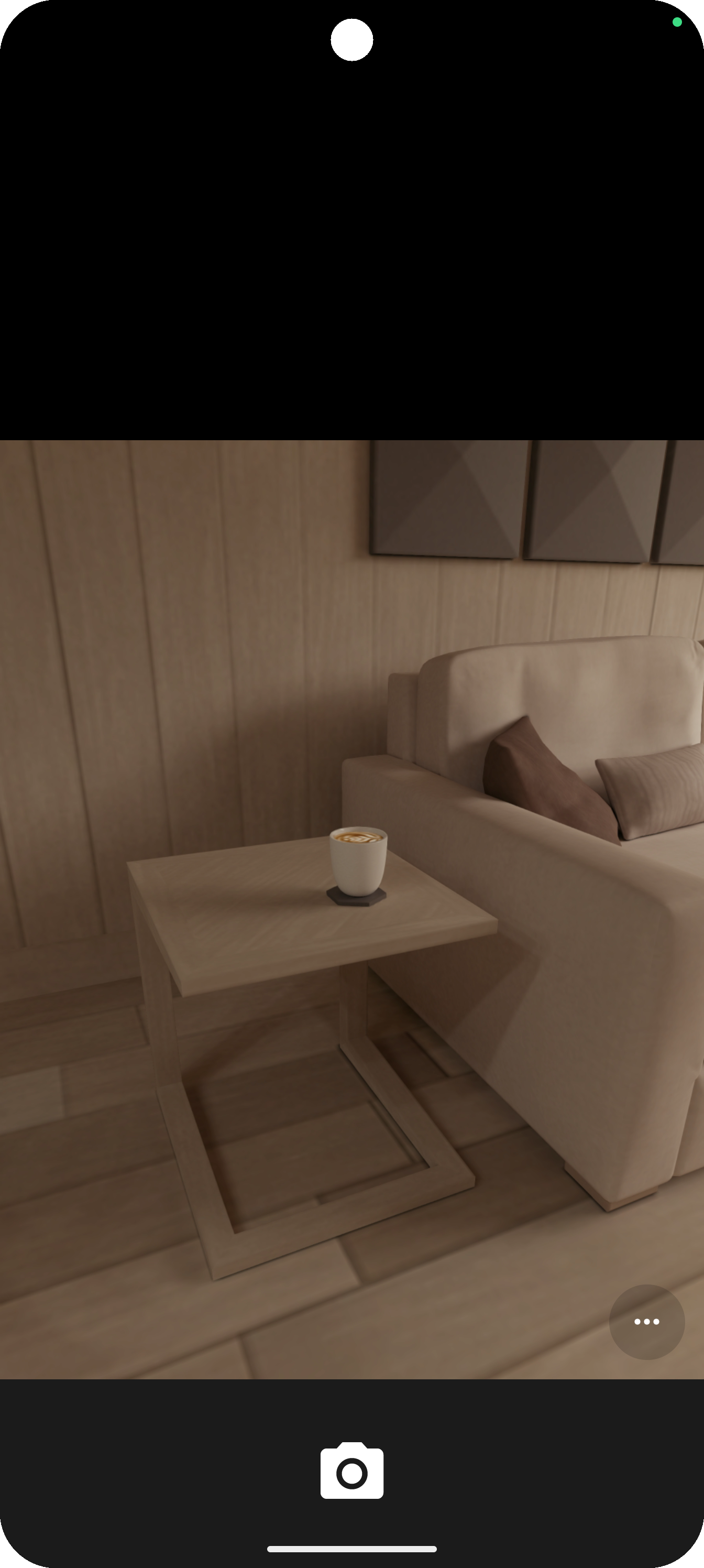

    · takePhoto - Allows the user to take a photo with their device's camera.

    · getLocation - Fetches the user's current location.

firebase.js

Initializes Firebase services.

  • KEY FEATURES

    Exports initialized instances of

    · Firebase Authentication

    · Firestore

    · Firebase Storage.
